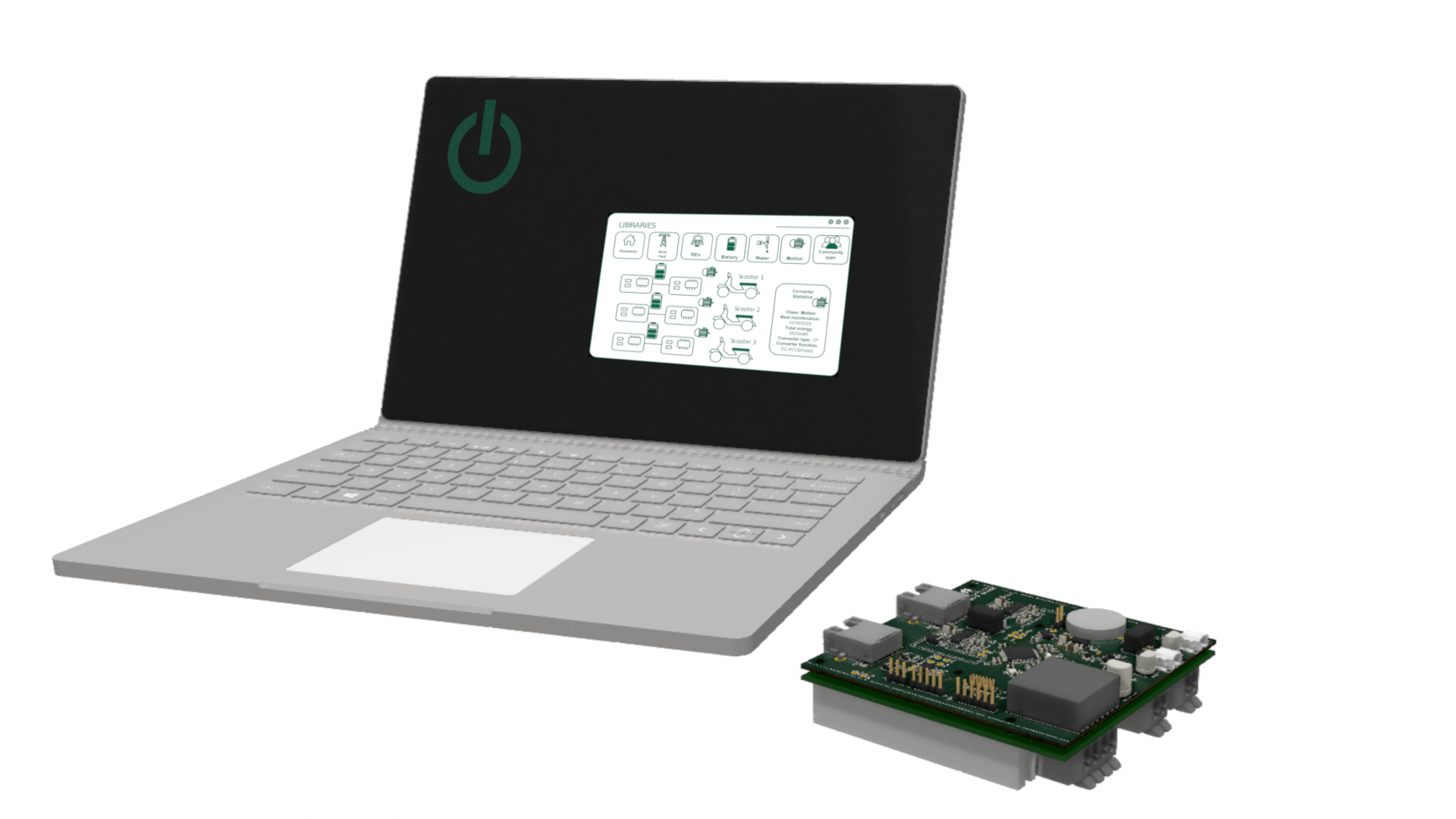

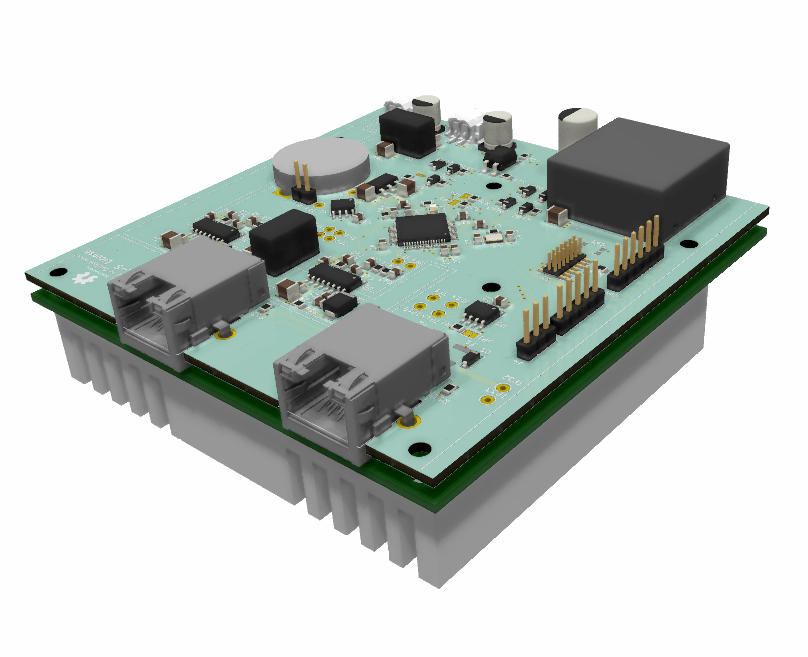

A power module to cover all your needs at low voltage applications
The low-voltage block can be used as a stand alone power converter or connected in parallel to other low-voltage blocks to raise its power level. Three blocks can be connected in parallel to drive a low-voltage synchronous machine.
DC - DC
Independent or interleaved, the two low-voltage channels can be used to manage DC-DC power flows.
DC - 1 phase AC
When driven complementarily and with its N-GND switched off, the power converter becomes a single-phase AC inverter.
DC - 3 phase AC
When connecting three blocks in parallel (Y or Delta) the system can drive a three-phase machine.
Stand-alone or in Parallel
A single block can be connected in parallel to raise its power level or unlock another conversion function. Three blocks can be connected in parallel to drive a low-voltage electric machine.
Specifications
- Nomical Power of 300W
- Two DC-DC independed power channels
- Completely reprogrammable
- Power channels can be interleaved for more current
- Single-phase inverter operation mode
- 10V to 78V on the low-voltage side
Possible applications of the low-voltage block

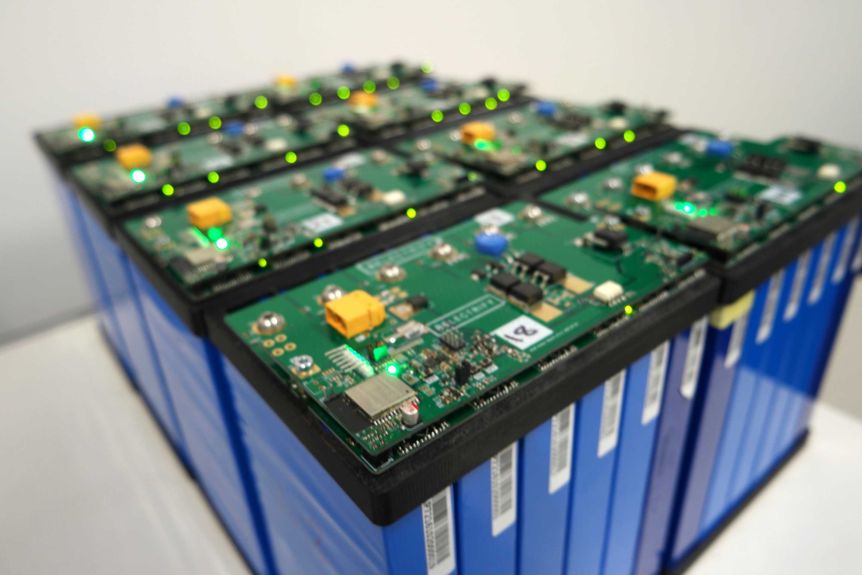

Battery charging system
When operating in DC-DC, the low-voltage block can be programmed to implement a battery charging algorithm best adapted to a target battery technology.
Small electric mobility
Three low-voltage blocks in parallel can be synchronized to drive a small electric machine of your choosing
Photovoltaic MPPT
You wish to develop an independent photovoltaic MPPT system? The low-voltage block can integrate the algorithm of your choosing.
The Iso-Power Curve
OwnTech takes an iso-power approach. This allows the technology suit to operate on a wide voltage and current ranges.
Power converters are usually designed with a specific function in mind, restricting their voltage and current operating levels.
We have chosen an ultra-flexible power architecture which allows to overcome these barriers.
Ahead of the curve
- 3 blocks to manage all voltage levels
- A solution for each function
- Stackable and reprogrammable
- Plug-and-play Power Electronics
- 10V to 450V
- 300W per block
